Hobart FT900S Parts Diagram
View Parts
View Manuals
Parts Manual
Installation & Operation Manual
Installation & Operation Manual
Dishwasher
Select a diagram for model FT900S:

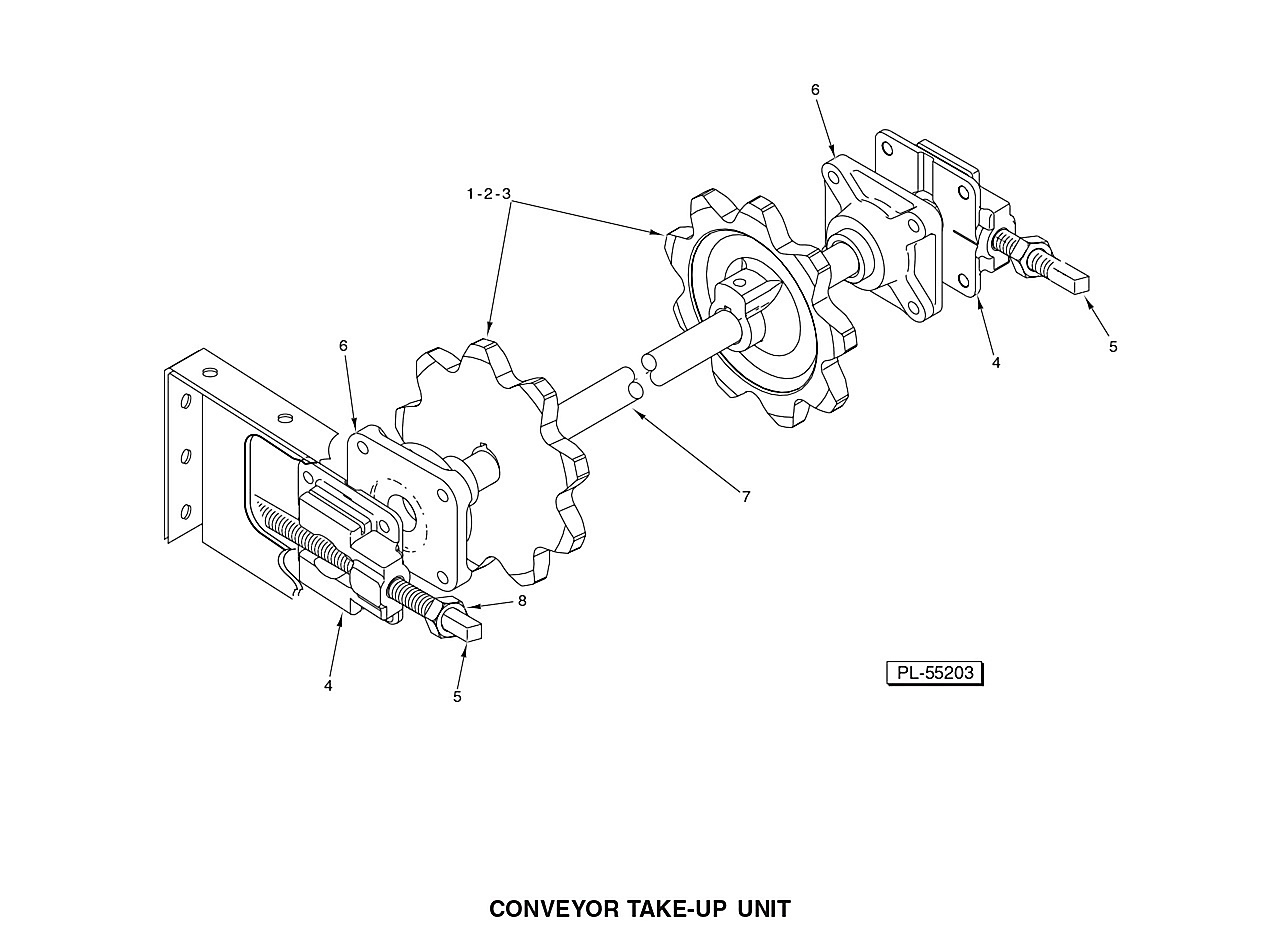

CONVEYOR TAKE-UP UNIT
LOAD PLATFORM
PREWASH SYSTEM (PUMP, MOTOR, AND ARMS)
FLUSH ARM UNIT
OVERFLOW UNIT (PREWASH SECTION)
DRAIN UNIT (PREWASH SECTION)
DOORS, CURTAINS, STRAINERS, AND BAFFLES (PREWASH SECTION)
PANELS AND TRACKS (PREWASH SECTION)
HINGED DOORS (PREWASH SECTION)
HINGED DOOR ATTACHMENT (PREWASH SECTION)
PHOTOELECTRIC EYE W/BRACKETS
PROBES (PREWASH SECTION)
PHOTOELECTRIC EYE CONTROL BOX
PREWASH TEMPERATURE CONTROL
CONTROL BOX AND LID (W/O CIRCUIT BREAKERS)
CONTROL BOX WITH CIRCUIT BREAKERS
CIRCUIT BREAKERS
LOWER BASE PLATE (CONTROL BOX) (PREVIOUS CONSTRUCTION)
LOWER BASE PLATE (CONTROL BOX) (CURRENT CONSTRUCTION)
BASE PLATE ASSEMBLY � UPPER AND BOTTOM
WASH/RINSE SYSTEM (PUMP, MOTOR, AND ARMS)
FILL PIPING
FINAL RINSE PIPING
FINAL RINSE ACTUATOR (PREVIOUS CONSTRUCTION)
DOORS, CURTAINS, STRAINERS, AND BAFFLES (WASH/RINSE SECTION)
HINGED DOORS (WASH/RINSE SECTION)
HINGED DOOR ATTACHMENT (WASH/RINSE SECTION)
FINAL RINSE MAKEUP UNIT AND PAN
FLOW BACK UNIT (WASH/RINSE SECTION)
DRAIN UNIT (WASH/RINSE SECTION)(2 UNITS REQUIRED � FT900 AND FT900W)(1 UNIT REQUIRED � FT900S)
PANELS AND TRACKS (WASH/RINSE SECTION)
ELECTRIC HEATER (ONE TANK)(2 UNITS REQUIRED � FT900 AND FT900W)
ELECTRIC HEATER (ONE TANK)(FT900S)
ELECTRIC HEATER (AUXILIARY TANK)(FT900W ONLY)
LOW WATER PROTECTION (STEAM HEAT)(2 UNITS REQUIRED � FT900 AND FT900W)(1 UNIT REQUIRED � FT900S)
DUAL RINSE PROBE BOX
STEAM COILS (TANK HEAT)(2 UNITS REQUIRED � FT900 AND FT900W)(1 UNIT REQUIRED � FT900S)
AUXILIARY TANK DRAIN AND PUMP(FT900W ONLY)
PIPING � STEAM COIL (ONE TANK)(2 UNITS REQUIRED � FT900 AND FT900W)(1 UNIT REQUIRED � FT900S)
TRACK AND STRAINER PAN (FT900W)
PIPING � COMMON STEAM (FT900)(STEAM COIL OR INJECTOR HEAT)
PIPING � COMMON STEAM (FT900S)(STEAM COIL OR INJECTOR HEAT)
PIPING � COMMON STEAM (FT900W)(STEAM COIL OR INJECTOR HEAT)
SINGLE-STEAM INJECTOR (TANK HEAT)(2 UNITS REQUIRED � FT900)
DOUBLE-STEAM INJECTOR (TANK HEAT)(2 UNITS REQUIRED � FT900 AND FT900W)(1 UNIT REQUIRED � FT900S)
PIPING � COMMON DOUBLE STEAM (FT900 AND FT900S)(STEAM COIL OR INJECTOR HEAT)
PIPING � COMMON DOUBLE STEAM (FT900W)(STEAM COIL OR INJECTOR HEAT)
STEAM BOOSTER (SINGLE-STEAM INJECTOR)
STEAM BOOSTER(DOUBLE-STEAM INJECTOR)
ELECTRIC BOOSTER (R-L)
ELECTRIC BOOSTER (L-R)
CIRCUIT BREAKER � ELECTRIC BOOSTER(MOUNTED ON ELECTRIC BOOSTER)(PREVIOUS CONSTRUCTION)
CIRCUIT BREAKER BOX
DRAIN UNIT(UNLOAD SECTION � AS REQUIRED)
PANELS AND TRACKS
CONVEYOR (TYPE AA)(17 FLIGHT LINKS PER ROD)(PREVIOUS CONSTRUCTION)
CONVEYOR (TYPE BB)(17 FLIGHT LINKS PER ROD)(CURRENT CONSTRUCTION)
CONVEYOR (TYPE A)(17 FLIGHT LINKS PER ROD)
CONVEYOR(THERMAL TRAY � POS 1 AND 2)(17 FLIGHT LINKS PER ROD)
CONVEYOR(OVAL TRAYS)(17 FLIGHT LINKS PER ROD)(PREVIOUS CONSTRUCTION)
CONVEYOR DRIVE UNIT
BLOWER DRYER UNIT(PREVIOUS CONSTRUCTION)
PLENUM, DEFLECTOR, TRACKS, AND DOORS
PANELS (DRYER)
HINGED DOORS(DUAL RINSE AND BLOWER DRYER)
HINGED DOOR ATTACHMENT(UNLOAD AND DUAL RINSE SECTIONS)
HEATER (ELECTRIC DRYER)
MOTOR � BLOWER DRYER(PREVIOUS CONSTRUCTION)
HEATER (STEAM DRYER)(PREVIOUS CONSTRUCTION)
LOW PROFILE BLOWER DRYER
BLOWER MOTOR(LOW PROFILE)
UNLOAD PLATFORM
